LED UV Module KES-GL-024

1. Scope of Application: This module is suitable for various devices with water storage tank.

2. Reference Standard: QB/T 4827-2015

3. Product Specification:

3-1. Rated Voltage: DC12V

3-2. Chip Supply Current: 25±3mA

3-3. Waterproof Grade: IP68 (The light source parts)

3-4. Application Temperature: ≤40℃

4. Properties of Products:

4-1.UV Power: ＞2 mW

4-2.Dielectric & Voltage Withstand: DC500V+2Vin / 1min

4-3.LED Life Span: ＞15,000h

4-4.Application Temperature: The product can work reliably in the range of -25℃ ~ 40℃.

4-5.Storage Temperature: The product can be stored reliably in the range of -40℃ ~ 85℃.

5.Testing Method:

5-1. UV Power Testing: Using the integrated sphere to test the module’s output of UV power, not less than 2mW.

5-2.UV Wavelength Range Measurement: 270nm—285nm

5-3.Life Testing: At room temperature, input DC12V, and the LED will

work continuously for 15,000 hours, power attenuation ≤50%, and other performance is normal.

5-4.

Seal Testing:put the light source under 0.1mpa water pressure and kept at 300s, no seepage will occur.

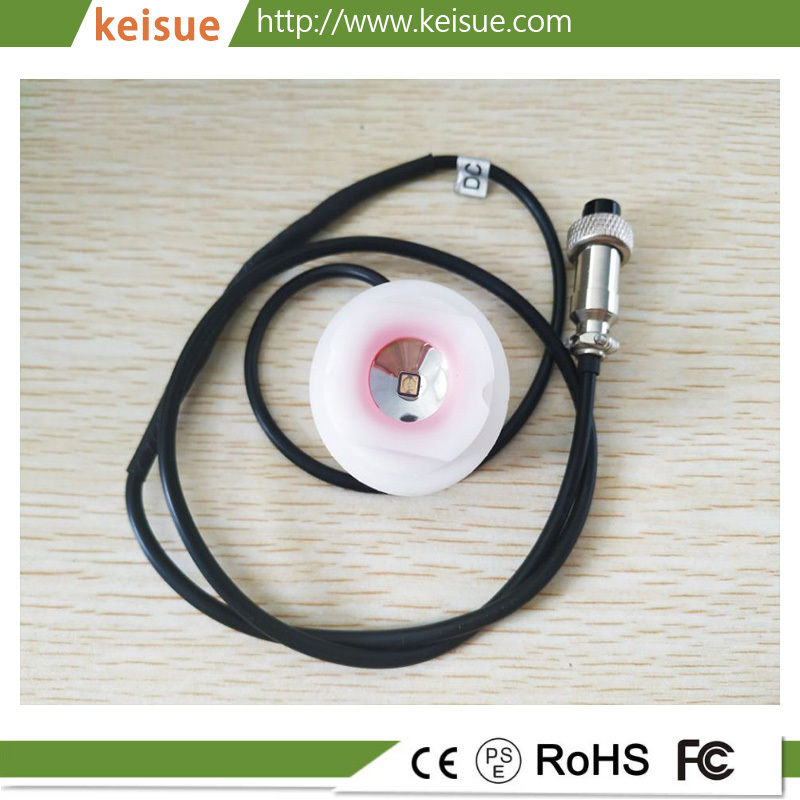

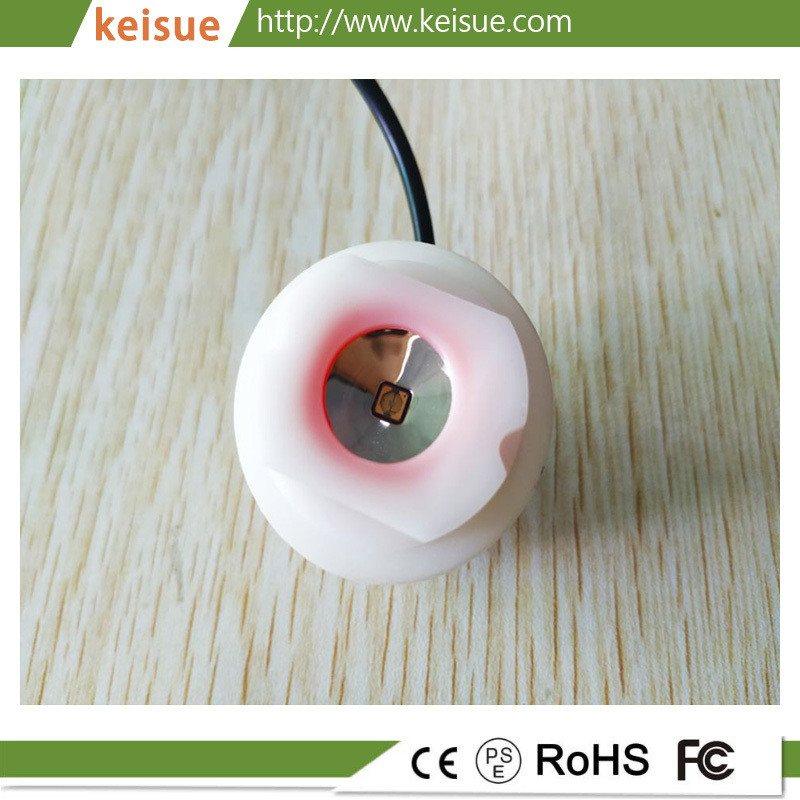

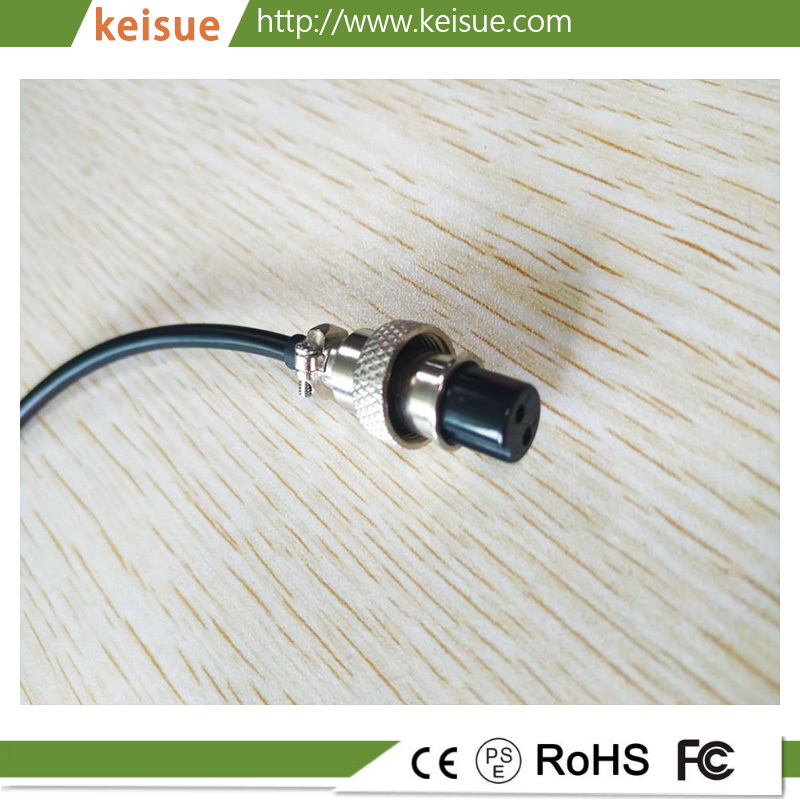

6. Product Photos:

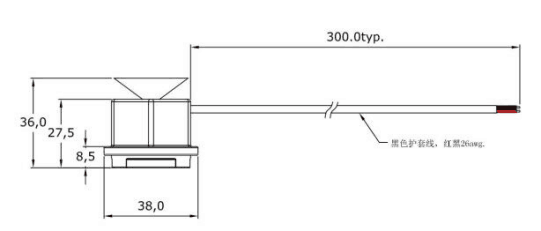

7.Specification & Dimension ( mm ):

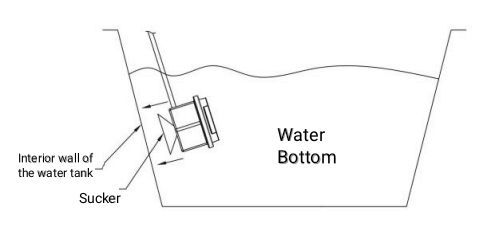

8. Instructions:
